Helix's actual (measured) Q range goes from 0.3 to 3, that's why I couldn't notch some very narrow frequencies.
Maybe the Parametric EQ was designer to emulate some pedal? Anyway, the actual Q range is not 0.1 to 10.

I was planning to start using the Helix Parametric eq to make some surgical eq cleaning, but it seems it would be a major mistake if the bandwidth is so large, unlike what it seems from the Helix Q value. I haven't compared the Helix Q factor with my VST plugins. I will try sooner or later...



[James Freeman]

I will try sooner or later...



[Lele]

Thanks @James Freeman!
I also just tried:
I used the VST plugin "ToneBoosters Parametric Equalizer"; same parameters of your post Q=3 gain= -12dB
versus
Helix Native: "Parametric EQ" block, Q=10, gain= -12dB.

They are EXACTLY THE SAME!
So the Helix real EQ bandwidth with Q=10 is about half octave, instead of 1/7 octave!!!

I haven't tried with my Helix Floor, but I suppose it's the same.
I hope that @Digital Igloo can help us.



[Stone]

EQ's are VEry Important no doubts



[James Freeman]

For now we can treat the Parametric eq like it is an emulation of a pedal or a console, I don't think it was designed to be a surgical eq like in DAW.



[Lele]

For now we can treat the Parametric eq like it is an emulation of a pedal or a console, I don't it was designed to be a surgical eq like in DAW.

But in that case they should not have labelled this block with "parametric eq" name and "q" parameter, because they are false or misleading.
I think that so far I have used the Helix Parametric EQ mainly or even only to cut a little the lows before some gainy amp blocks, so I have never noticed this wrong Q parameter. And now I know I can push the Q value a lot when I use it as an ordinary EQ block.
Kudos to you for finding out this (imho) mistake of Helix Parametric EQ block!



[dronerstone]

For now we can treat the Parametric eq like it is an emulation of a pedal or a console, I don't think it was designed to be a surgical eq like in DAW.

I found it easy to recreate the sounds of my Dunlop Q-Zone and Stone Deaf PDF-1 with the HX parametric EQ.

Definitely not a studio-grade "surgical" EQ though, I fully agree about that.



[James Freeman]

Don't Line 6 just hate when I do that.
I think they will send me a special virus with the next version of Native to nuke my DAW.



[DieSchmalle]

Q = fr / Δf = 800Hz / (950Hz-680Hz) ≈ 3
(values read from @James Freeman 's pic)

Using the "full width at half maximum" definition the Helix's Q-factor value is correct.

It's just a question of what Q-factor definition is used.



[SwirlyMaple]

Helix’s “Q” readout is probably just a “notchiness” value ranging from 0 to 10, rather than reporting the true mathematical value of Q.

Not saying that’s a good thing. Just saying that’s probably how it ended up that way.



[DieSchmalle]

Helix’s “Q” readout is probably just a “notchiness” value ranging from 0 to 10, rather than reporting the true mathematical value of Q.

Not saying that’s a good thing. Just saying that’s probably how it ended up that way.

No. It's a question of what definition is used when measuring bandwidth: +-3dB or half maximum.

Take the example above:
Q = fr / Δf = 800Hz / (950Hz-680Hz) ≈ 3 (half max definition, here -6dB)
vs
Q = fr / Δf = 800Hz / (850Hz-770Hz) = 10 (-3dB definition)



[HotRats]

Helix’s “Q” readout is probably just a “notchiness” value ranging from 0 to 10, rather than reporting the true mathematical value of Q.

Not saying that’s a good thing. Just saying that’s probably how it ended up that way.

I believe you're right.



[James Freeman]

Helix’s “Q” readout is probably just a “notchiness” value ranging from 0 to 10, rather than reporting the true mathematical value of Q.
Not saying that’s a good thing. Just saying that’s probably how it ended up that way.

I also think this is the case.
Looking in the manuals of various parametric eq pedals, their Q doesn't go above 4 at the narrowest setting, sometimes even lower.
So our current parametric eq is more like a pedal, similar to the Empress ParaEq.

A more surgical parametric eq is a very good thing to have in a modeler.
Particularly when shaping the sound visually in DAW (Helix Native) using some pink noise and analyzers then saving the perfected sound as a preset.



[HotRats]

I also think this is the case.
Looking in the manuals of various parametric eq pedals, their Q doesn't go above 4 at the narrowest setting, sometimes even lower.
So our current parametric eq is more like a pedal, similar to the Empress ParaEq.

A more surgical parametric eq is a very good thing to have in a modeler.
Particularly when shaping the sound visually in DAW (Helix Native) using some pink noise and analyzers then saving the perfected sound as a preset.

Totally agree, given the broad use of a modeller and the Helix ecosystem, a surgical eq would be a nice addition.



[yeky83]

No. It's a question of what definition is used when measuring bandwidth: +-3dB or half maximum.

Take the example above:
Q = fr / Δf = 800Hz / (950Hz-680Hz) ≈ 3 (half max definition, here -6dB)
vs
Q = fr / Δf = 800Hz / (850Hz-770Hz) = 10 (-3dB definition)

Edit: Which btw means that both methods deliver the same result for gain =+-6dB.

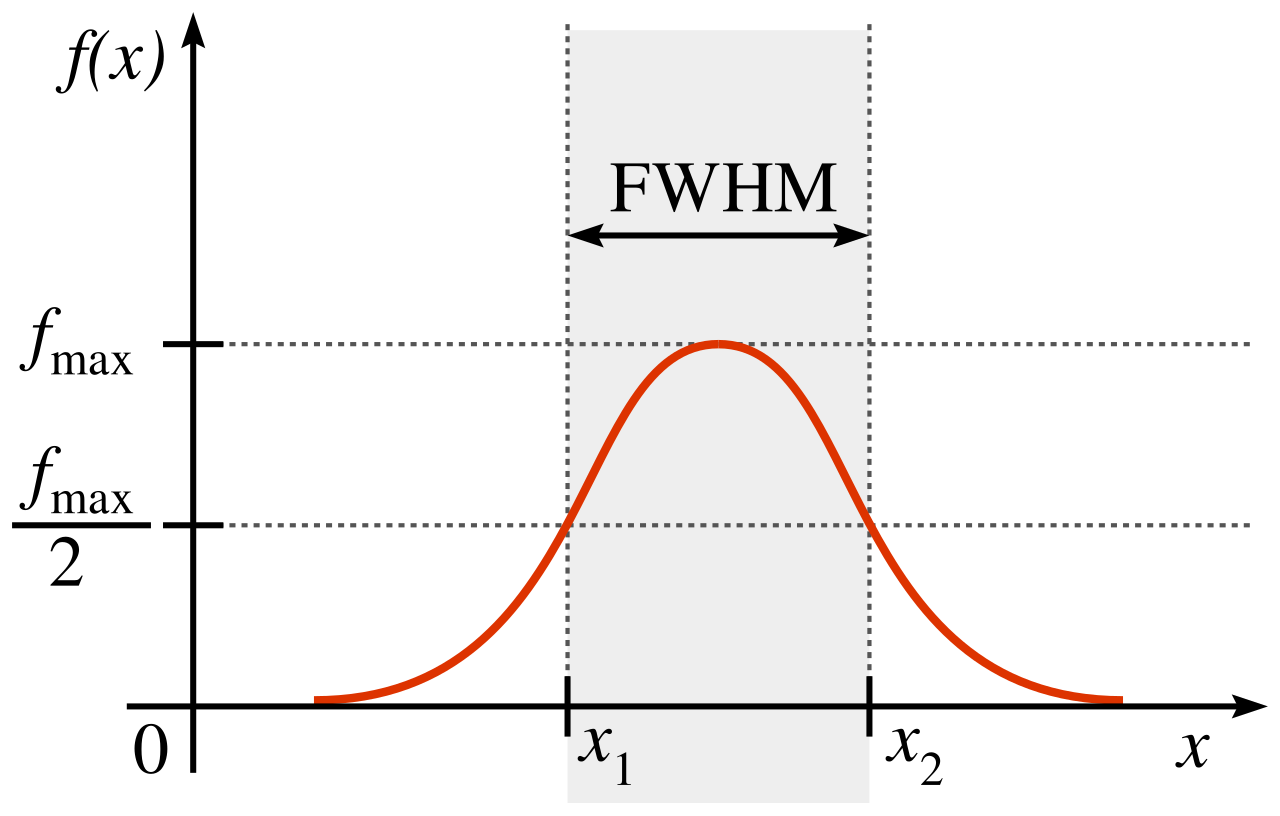

I don't think so...? FWHM refers to -3 dB of attenuation, no?

Full width at half maximum - Wikipedia

en.wikipedia.org



[James Freeman]

Using this calculator: http://www.sengpielaudio.com/calculator-cutoffFrequencies.htm

With center frequency 800Hz and Q=3, I get two -3dB cutoff frequencies at 677Hz and 944Hz.
But when pointing these frequencies in MEqualizer in my DAW they are the FWHM points at -6dB when Gain is at -12dB.
So which one is it, -3dB or FWHM?

But when using a Notch filter which doesn't have a Gain setting, I see the -3dB point at 944Hz from the calculator.

Also when manually finding and calculating the frequencies at -9dB which are the 3dB points above the -12dB dip, I get a Q of 5.5.
800/(877-733) = 5.55

So yeah, Q factor calculation doesn't make sense to me, particularly -3dB vs FWHM.
And Helix's Q of 10 is none of the above, it's just an arbitrary scale number like from 0 to 10.



[DieSchmalle]

Using this calculator: http://www.sengpielaudio.com/calculator-cutoffFrequencies.htm

View attachment 9240

With center frequency 800Hz and Q=3, I get two -3dB cutoff frequencies at 677Hz and 944Hz.
But when pointing these frequencies in MEqualizer in my DAW they are the FWHM points at -6dB when Gain is at -12dB.
So which one is it, -3dB or FWHM?

View attachment 9238


But when using a Notch filter which doesn't have a Gain setting, I see the -3dB point at 944Hz from the calculator.

View attachment 9239

Also when manually finding and calculating the frequencies at -9dB which are the 3dB points above the -12dB dip, I get a Q of 5.5.
800/(877-733) = 5.55

View attachment 9241


So yeah, Q factor calculation doesn't make sense to me, particularly -3dB vs FWHM.
And Helix's Q of 10 is none of the above, it's just an arbitrary scale number like from 0 to 10.

I'm not gonna give a lecture here but a hint: dB is tricky and power is not voltage. A passage on the calculator page even kind of explains it.
