Yep in the AM4 presets , it pretty sparse right now except for Yeks and the Paisley country rock

hey now. I contributed the 1st invisible phaser there ;P but fine forget about me!



[AlbertA]

Here it is: https://forum.fractalaudio.com/thre...ulti-model-edition.177536/page-5#post-2735036



[BROCKSTAR]

Here it is: https://forum.fractalaudio.com/thre...ulti-model-edition.177536/page-5#post-2735036

blocks!!



[JiveTurkey]

2 for 1 special. Plex Verb and rotary block. With the Recto Orange Modern

Probably a terrible selection use for a rotary example but I think Merlin Munson would approve, shit playing and Audacity DAW aside



[BROCKSTAR]



[GTR37]

hey now. I contributed the 1st invisible phaser there ;P but fine forget about me!

I will have to check again I looked for that preset but couldn't see it



[GTR37]

2 for 1 special. Plex Verb and rotary block. With the Recto Orange Modern

Probably a terrible selection use for a rotary example but I think Merlin Munson would approve, shit playing and Audacity DAW aside

I actually really like that , its cool almost a psychedelic Soundgarden, oh by the way can you Post your Recto Orange settings that sounds killer



[JiveTurkey]

I actually really like that , its cool almost a psychedelic Soundgarden, oh by the way can you Post your Recto Orange settings that sounds killer

Thank you sir! Preset attached \m/



[Los-D]

FAS Stealth Blue

The 5153 red channel with a TS is killer too



[AlbertA]

TL; DR

• TI SoC - 66AK2G12ABY100 KeyStone II Multicore

  • 1 Arm Cortex-A15 @1GHz
  • 1 C66x DSP @1GHz
• 512 MB DDR3 RAM
• 64 MB + 48MB NOR Flash
• Cirrus Logic CS4272-CZZ Codec - A/D + DAC

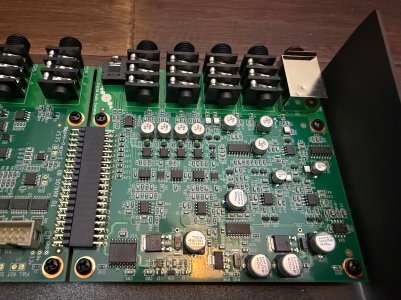

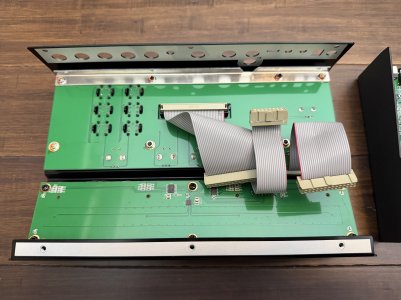

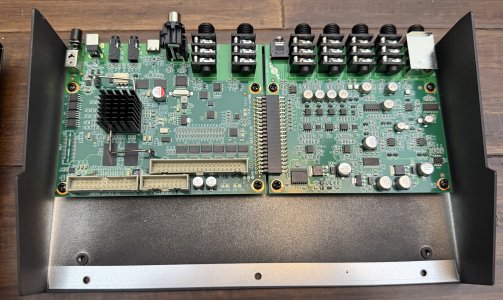

Gut shots

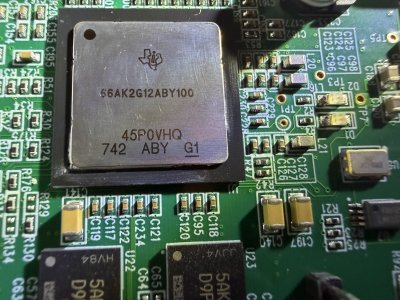

TI SoC - 66AK2G12ABY100 KeyStone II Multicore

• 1 Arm Cortex-A15 @1GHz
• 1 C66x DSP @1GHz

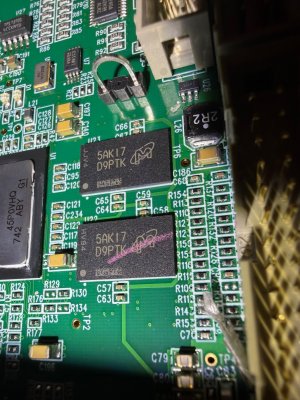

512 MB DDR RAM - 2 Micron MT41K128M16JT-125:K


64 MB NOR Flash - 2 Winbond W25Q256JVEQ

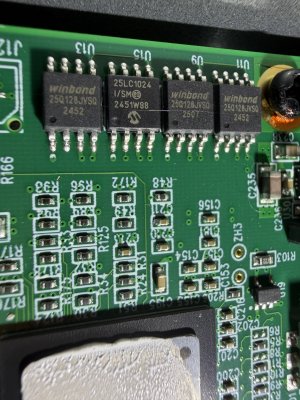

Another 48MB of NOR FLASH - 3 Winbond W25Q128JV
128KB EEPROM - Microchip 25LC1024

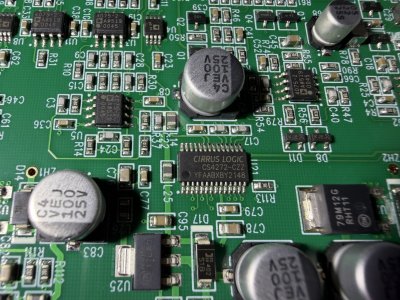

CODEC (DAC - A/D) - Cirrus Logic CS4272-CZZ

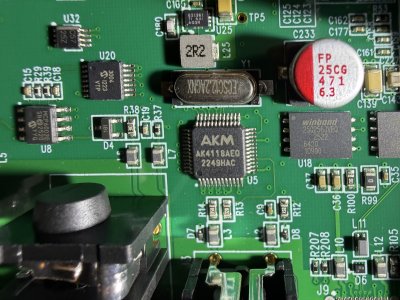

Digital Transceiver (for S/PDIF) - AKM AK4118AEQ



[GTR37]

TL; DR

• TI SoC - 66AK2G12ABY100 KeyStone II Multicore

  • 1 Arm Cortex-A15 @1GHz
  • 1 C66x DSP @1GHz
• 512 MB DDR3 RAM
• 64 MB + 48MB NOR Flash
• Cirrus Logic CS4272-CZZ Codec - A/D + DAC

Gut shots

View attachment 56084View attachment 56093
View attachment 56085View attachment 56086

TI SoC - 66AK2G12ABY100 KeyStone II Multicore

• 1 Arm Cortex-A15 @1GHz
• 1 C66x DSP @1GHz

View attachment 56092

512 MB DDR RAM - 2 Micron MT41K128M16JT-125:K
View attachment 56091

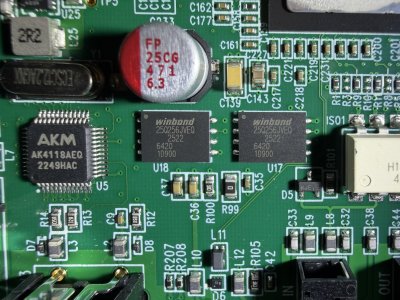

64 MB NOR Flash - 2 Winbond W25Q256JVEQ
View attachment 56089

Another 48MB of NOR FLASH - 3 Winbond W25Q128JV
128KB EEPROM - Microchip 25LC1024

View attachment 56090

CODEC (DAC - A/D) - Cirrus Logic CS4272-CZZ

View attachment 56087

Digital Transceiver (for S/PDIF) - AKM AK4118AEQ
View attachment 56088

I still say that is a beast of a Chip for 4 blocks



[Mongillo19]

I still say that is a beast of a Chip for 4 blocks

Plenty of room for firmware updates Gen IV



[Richard_G]

I have confirmed my intention to buy the AM4 from G66, so I should get one from the first large European air shipment. Really looking forward to it!



[PhilA]

#waitspatientlyforthemtogettomeintheuklist
