Shask said:
I think that is what the shelves are. That sounds familiar.

The Fractal is the Pearl Overdrive clone. It is interesting. It is basically like a Tubescreamer that doesn't cut any bass. The Mid control can majorly boost or cut the mids. I generally use these types of pedals for boosting high gain, but it isn't as good at that since it doesn't cut bass. I like the VFE Ice Scream Clone and the Ibanez ST-9 clones better for the Tubescreamer with a Parametric Mid boost thing.

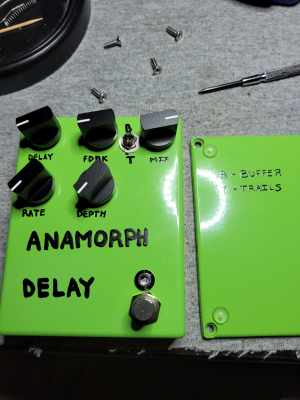

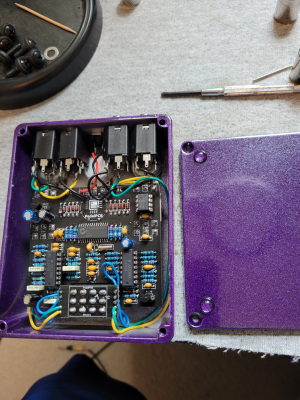

The last several I did that are not in this picture are FV-1 pedals and Analog BBD pedals. I did the Boss DM-2 Clone (Aion), the Memory Man clone, and Anamorph from Madbean. Stacked PCBs with BBD chips can get pretty crazy! I have also done several of the PPCB FV-1 pedals. I even did the stereo one, but haven't spent enough time trying to create stereo algorithms yet. These are tricky because of the SMT soldering, but not too bad.
Click to expand...

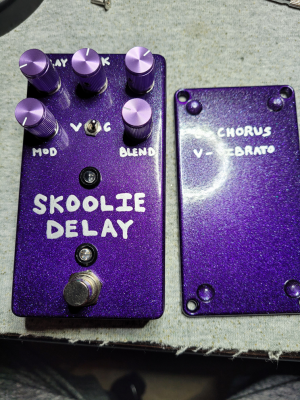

Here are a few that I mentioned up close:







Spent a few recent weekends catching up on PedalPCB and Aion builds. As you can see, I'm bad about doing things like building pedals and not practicing or playing my instrument - and especially when all the family is at home and I don't feel like making noise.






Southpaw-DD said:
Spent a few recent weekends catching up on PedalPCB and Aion builds. As you can see, I'm bad about doing things like building pedals and not practicing or playing my instrument - and especially when all the family is at home and I don't feel like making noise.

(snipped images)
Click to expand...
Beautiful! How are you finishing your enclosures / where are you buying them? What about the pedal art - stickers or something else?

eggpl@nt said:
Beautiful! How are you finishing your enclosures / where are you buying them? What about the pedal art - stickers or something else?
Click to expand...

Hey - thanks for the kind comment. I'm using Tayda Electronics enclosures, drill service and UV printing (which seems to average out to about $18 a box with shipping and fees).

The artwork is created in Affinity Designer 2 and sometimes I'll use AI art, vector graphics (free or paid on Etsy, etc.), or just unique fonts (like found on dafont.com). There are some how-to guides on creating the artwork that I can link later on if you are interested.

zedhed said:
I don't build pedals, but what a great thread!

@gearJunkie, what have you been up to...it's been awhile since you last posted.

​

Click to expand...
I'm still in my initial learning and experimentation phase. I've breadboarded a couple of simple fuzz face circuits, but recently I have been distracted with work and other non-guitar side projects.

I have been looking for an inspirational pedal project to get me motivated. I have a few ideas so maybe your inquiry will get me off my @$$ to finally build something.

Thanks for the motivation! I'll hopefully have a meaningful update in the next couple weeks

:beer
